Back to Safety Power Rail & Cable Festoon System
Safety Power Rail & Cable Festoon System
I-Type Safety Power Rail
1/2
-
I-Type Insulated Conductor Rails 200A
-
Various of Application in Installation frame for I-Type Insulated Conductor Rails illustrated below :
S type
Line Case
Around type
Curve Case
I-TYPE SAFETY POWER RAIL COMPONENTS
-
I-Type End Tension & Power In
-
I-Type Hanger Clamp
-
I-Type Insulated Conductor Rails
Material of Conductor : Copper
Material of Insulator : PVC (Up to 60°C)
-
I-Type Collector
-
I-Type Collector is only for replacement that is a consuming parts of I-Type Collector Shoe.
-
I-Type Collector Shoe
-
I-Type Middle Power Feeding
-
I-Type Middle Power Feeding is used for connecting I-Type Insulated Conductor Rails that will be extended or the length of I-Type Insulated Conductor Rails is over 100 meters to avoid voltage dropping.
-
I-Type Fixed End Insulator
-
Use I-Type Fixed End Insulator instead of I-Type End Tension & Power In at one end if the length of I-Type Insulated Conductor Rails is installed less than 30 meters, in order to save the material cost if necessary.
-
I-Type Insulator Hanger
-
I-Type Insulator Hanger is an option for installation outdoors and in dusty places.
Components

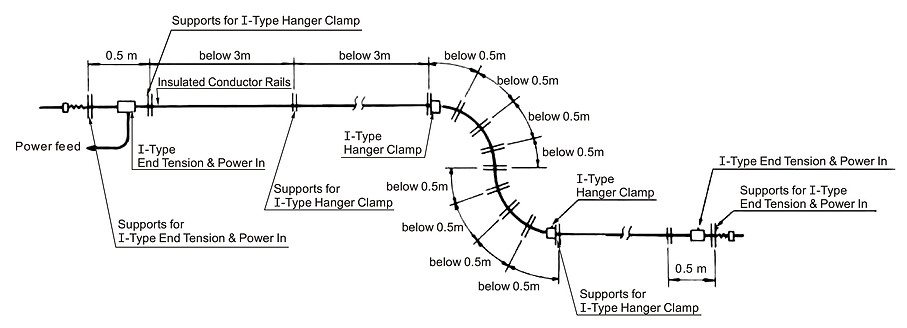

I-TYPE SAFETY POWER RAIL OUTLINE DESIGN
-
Side Installation
-
Vertical Installation
-

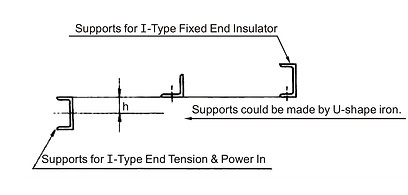

Supports Design
Line Case
Curve Case
Around type
"S" type
(1) How to install I-Type End Tension & Power In
A
B
Use I-Type Fixed End Insulator instead of I-Type End Tension & Power In if the total length of I-Type Insulated Conductor Rails is installed in 30 meters.
(2) How to install I-Type Hanger Clamp
A
B
C

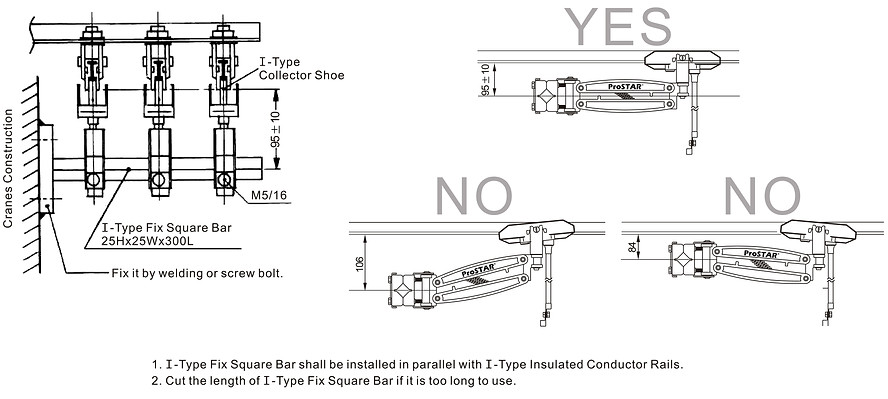

(3) How to install I-Type Fix Square Bar and I-Type Insulated Conductor Rails
A
B
*Caution:

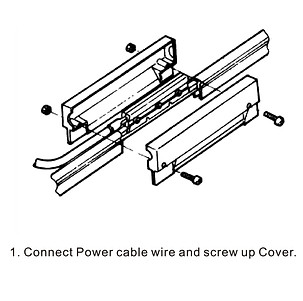

(4) How to install I-Type Middle Power Feeding
A
B
Outline design
How to install
